VCF9.1 - VCF Automation 삭제 후 재설치 방법 (VCFA 업그레이드/배포 이슈 발생시 조치 방법 / VCF Logs/SSO도 해당)

[발생 이슈]

9.0.1.0.24965341 → 9.1.0.0.25370929 업그레이드 간 이슈 발생



[VCF Automation 업그레이드시 명확하게 나오지 않는 원인 찾는 방법]

1. VMSP (Management Service) VIP 로그인

- 로그인 계정 : vmware-system-user

- sudo 전환 : sudo su (or su -)



2. VMSP 루트 권한 가진 상태에서 VCFA 9.1 SSH 접속

vmware-system-user@kr-vsp-wzmhd [ ~ ]$ ssh vmware-system-user@kr-auto9.rangers.lab

The authenticity of host 'kr-auto9.rangers.lab (192.168.111.144)' can't be established. ED25519 key fingerprint is SHA256:fvWAwaYXVOy8I2FvZThUaaYlbFpuZXSOVBEvn0ihpUM.

This key is not known by any other names.

Are you sure you want to continue connecting (yes/no/[fingerprint])? yes



Warning: Permanently added 'kr-auto9.rangers.lab' (ED25519) to the list of known hosts.

Welcome to Photon 5.0 (\m) - Kernel \r (\l) (vmware-system-user@kr-auto9.rangers.lab) Password: (vmware-system-user@kr-auto9.rangers.lab) Password: Last login: Sun Jun 14 00:29:47 2026 from 192.168.111.179



vmware-system-user@kr-auto9-8d728 [ ~ ]$ sudo chmod 777 /etc/kubernetes/admin.conf

[sudo] password for vmware-system-user:

vmware-system-user@kr-auto9-8d728 [ ~ ]$ export KUBECONFIG=/etc/kubernetes/admin.conf



3. VCF automation service - namespace 조회

vmware-system-user@kr-auto9-8d728 [ ~ ]$ kubectl get ns

NAME STATUS AGE default Active 20h kube-node-lease Active 20h kube-public Active 20h kube-system Active 20h prelude Active 19h vmsp-platform Active 20h vmsp-policies Active 20h

4. VCF automation service - workflows 조회

vmware-system-user@kr-auto9-8d728 [ ~ ]$ kubectl get workflows -A

NAMESPACE NAME STATUS AGE MESSAGE vmsp-platform scheduled-etcd-backup-1781395200 Succeeded 48m vmsp-platform upgrade-component-6o4v2zdxargwvkpci4oziv3mwm Failed 19h retryStrategy.expression evaluated to false vmsp-platform wal-s3-cleanup-1781395200 Succeeded 48m



5. VCF automation service - Jobs 조회

vmware-system-user@kr-auto9-8d728 [ ~ ]$ kubectl get jobs -A

NAMESPACE NAME STATUS COMPLETIONS DURATION AGE vmsp-platform etcd-defrag-manual Complete 1/1 14s 20h vmsp-platform logging-operator-volumes-resize Complete 1/1 4s 19h vmsp-platform platform-trust-vsphere-certificate-update-cronjob-29689920 Complete 1/1 3s 48m vmsp-platform platform-trust-vsphere-certificate-update-cronjob-29689950 Complete 1/1 3s 18m vmsp-platform seaweedfs-volume-resize Complete 1/1 3s 20h vmsp-platform service-account-rotation-cronjob-29689920 Complete 1/1 3s 48m vmsp-platform support-bundle-cluster-info-dump-29689200 Complete 1/1 61s 12h vmsp-platform support-bundle-cluster-info-dump-29689920 Complete 1/1 63s 48m vmsp-platform support-bundle-collect-metrics-29689800 Complete 1/1 4s 168m vmsp-platform support-bundle-collect-metrics-29689860 Complete 1/1 3s 108m vmsp-platform support-bundle-collect-metrics-29689920 Complete 1/1 4s 48m vmsp-platform vcenter-path-sync-cronjob-29689860 Complete 1/1 3s 108m vmsp-platform vcenter-path-sync-cronjob-29689920 Complete 1/1 4s 48m vmsp-platform zot-volumes-resize Complete 1/1 3s 20h vmware-system-user@kr-auto9-8d728 [ ~ ]$



6. VCF automation service - Pod 조회

vmware-system-user@kr-auto9-8d728 [ ~ ]$ kubectl get pods -A

NAMESPACE NAME READY STATUS RESTARTS AGE kube-system antrea-agent-mkqcs 2/2 Running 2 (95m ago) 20h kube-system antrea-controller-78975945b4-d29sj 1/1 Running 1 (95m ago) 20h kube-system coredns-5496b74c4-gm9n7 1/1 Running 1 (95m ago) 20h kube-system coredns-5496b74c4-h6p8x 1/1 Running 1 (95m ago) 20h kube-system etcd-kr-auto9-8d728 1/1 Running 1 (95m ago) 20h kube-system kube-apiserver-kr-auto9-8d728 1/1 Running 1 (95m ago) 20h kube-system kube-controller-manager-kr-auto9-8d728 1/1 Running 1 (95m ago) 20h kube-system kube-proxy-7lfrz 1/1 Running 1 (95m ago) 20h kube-system kube-scheduler-kr-auto9-8d728 1/1 Running 1 (95m ago) 20h kube-system kube-vip-kr-auto9-8d728 1/1 Running 1 (95m ago) 20h kube-system vsphere-cpi-57hsf 1/1 Running 2 (99m ago) 20h kube-system vsphere-csi-controller-c8679dbc5-qp5z2 6/6 Running 6 (95m ago) 20h kube-system vsphere-csi-node-bxngf 3/3 Running 5 (95m ago) 20h prelude health-status-app-vm9mp 0/2 ImagePullBackOff 0 19h prelude svc-logrotate-x9bcx 0/1 ImagePullBackOff 0 19h prelude vcfapostgres-0 3/3 Running 3 (95m ago) 19h prelude vcfapostgres-pooler-5d97965d8d-c8mst 1/1 Running 1 (95m ago) 19h prelude vcfapostgres-pooler-5d97965d8d-x8nsh 1/1 Running 1 (95m ago) 19h vmsp-platform alertmanager-kube-prometheus-stack-alertmanager-0 2/2 Running 2 (95m ago) 20h vmsp-platform argo-workflows-workflow-controller-57bbc66676-2chjt 1/1 Running 1 (95m ago) 20h vmsp-platform capi-controller-manager-d55798b89-m5th9 1/1 Running 1 (95m ago) 20h vmsp-platform capi-controller-manager-d55798b89-p786z 1/1 Running 1 (95m ago) 20h vmsp-platform capi-ipam-in-cluster-controller-manager-5dc6c6b847-9bl5t 1/1 Running 1 (95m ago) 20h vmsp-platform capi-ipam-in-cluster-controller-manager-5dc6c6b847-prxrc 1/1 Running 1 (95m ago) 20h vmsp-platform capi-kubeadm-bootstrap-controller-manager-5fb45864db-9q48t 1/1 Running 1 (95m ago) 20h vmsp-platform capi-kubeadm-bootstrap-controller-manager-5fb45864db-pmrkw 1/1 Running 1 (95m ago) 20h vmsp-platform capi-kubeadm-control-plane-controller-manager-ffd8fc9f-mfd99 1/1 Running 1 (95m ago) 20h vmsp-platform capi-kubeadm-control-plane-controller-manager-ffd8fc9f-ntrfs 1/1 Running 1 (95m ago) 20h vmsp-platform capv-controller-manager-7cd6655bff-z2w6b 1/1 Running 1 (95m ago) 20h vmsp-platform capv-controller-manager-7cd6655bff-zj9qv 1/1 Running 1 (95m ago) 20h vmsp-platform cert-manager-58d87667b-g6vln 1/1 Running 1 (95m ago) 20h vmsp-platform cert-manager-cainjector-967cc9898-m2fs7 1/1 Running 1 (95m ago) 20h vmsp-platform cert-manager-webhook-68987786cf-hrrkl 1/1 Running 1 (95m ago) 20h vmsp-platform cluster-autoscaler-clusterapi-cluster-autoscaler-66f4b47bdmvrb4 1/1 Running 1 (95m ago) 20h vmsp-platform envoy-gateway-5bb66999-5wx58 1/1 Running 1 (95m ago) 20h vmsp-platform etcd-defrag-manual-fnvnk 0/1 Completed 0 20h vmsp-platform event-tailer-event-tailer-0 1/1 Running 1 (95m ago) 20h vmsp-platform helm-controller-577d87cc94-mvqmq 1/1 Running 1 (95m ago) 20h vmsp-platform hooks-server-synthetic-checker-69f94fb555-rf6lv 2/2 Running 2 (95m ago) 20h vmsp-platform kube-prometheus-stack-kube-state-metrics-f87d55467-bnkp9 1/1 Running 1 (95m ago) 20h vmsp-platform kube-prometheus-stack-operator-776b689c68-fkb89 1/1 Running 1 (95m ago) 20h vmsp-platform kube-prometheus-stack-prometheus-node-exporter-whg5r 1/1 Running 1 (95m ago) 20h vmsp-platform kube-vip-r9x6k 1/1 Running 1 (95m ago) 20h vmsp-platform logging-operator-cc6f9f696-tszkx 1/1 Running 1 (95m ago) 20h vmsp-platform logging-operator-filelogs-fluentbit-xfrch 1/1 Running 1 (95m ago) 20h vmsp-platform logging-operator-fluentbit-m784z 1/1 Running 1 (95m ago) 20h vmsp-platform logging-operator-fluentd-0 2/2 Running 2 (95m ago) 20h vmsp-platform logging-operator-fluentd-configcheck-1c9ca1bb 0/1 Completed 0 20h vmsp-platform logging-operator-systemlogs-fluentbit-lkzvf 1/1 Running 1 (95m ago) 20h vmsp-platform logging-operator-volumes-resize-4f2h6 0/1 Completed 0 19h vmsp-platform logs-tailer-host-tailer-6xzh8 1/1 Running 1 (95m ago) 20h vmsp-platform metadata-service-5nr2x 1/1 Running 1 (95m ago) 20h vmsp-platform metrics-server-c77f6c7f8-77mbk 1/1 Running 1 (95m ago) 20h vmsp-platform ndc-controller-manager-7547fdf4bf-hvxvx 1/1 Running 1 (95m ago) 20h vmsp-platform ndc-controller-manager-7547fdf4bf-w9tqm 1/1 Running 1 (95m ago) 20h vmsp-platform node-problem-detector-99zlz 1/1 Running 1 (95m ago) 20h vmsp-platform platform-trust-vsphere-certificate-update-cronjob-2968992064sbt 0/1 Completed 0 49m vmsp-platform platform-trust-vsphere-certificate-update-cronjob-2968995097lbm 0/1 Completed 0 19m vmsp-platform prometheus-kube-prometheus-stack-prometheus-0 2/2 Running 2 (95m ago) 20h vmsp-platform proxy-service-778f9cb5f9-dn99p 1/1 Running 1 (95m ago) 20h vmsp-platform seaweedfs-cleanup-54787b956c-768sb 1/1 Running 1 (95m ago) 20h vmsp-platform seaweedfs-filer-0 1/1 Running 3 (99m ago) 20h vmsp-platform seaweedfs-master-0 1/1 Running 1 (95m ago) 20h vmsp-platform seaweedfs-volume-0 1/1 Running 1 (95m ago) 20h vmsp-platform seaweedfs-volume-1 1/1 Running 1 (95m ago) 20h vmsp-platform seaweedfs-volume-2 1/1 Running 1 (95m ago) 20h vmsp-platform seaweedfs-volume-resize-brcbt 0/1 Completed 0 20h vmsp-platform service-account-rotation-cronjob-29689920-985lv 0/1 Completed 0 49m vmsp-platform source-controller-755f68b474-sgdv8 1/1 Running 1 (95m ago) 20h vmsp-platform strimzi-cluster-operator-f7bf56558-vdjlk 1/1 Running 1 (95m ago) 20h vmsp-platform support-bundle-b97b58659-rgths 2/2 Running 2 (95m ago) 20h vmsp-platform support-bundle-cleanup-nodes-tqnms 1/1 Running 1 (95m ago) 20h vmsp-platform support-bundle-cluster-info-dump-29689200-hlbg9 0/1 Completed 0 12h vmsp-platform support-bundle-cluster-info-dump-29689920-ntvm9 0/1 Completed 0 49m vmsp-platform support-bundle-collect-metrics-29689800-wmw4m 0/1 Completed 0 169m vmsp-platform support-bundle-collect-metrics-29689860-6m8nb 0/1 Completed 0 109m vmsp-platform support-bundle-collect-metrics-29689920-5k5tb 0/1 Completed 0 49m vmsp-platform support-bundle-logcopier-d64hx 1/1 Running 1 (95m ago) 20h vmsp-platform support-bundle-logcopier-event-tailer-597448947b-6p9dm 1/1 Running 1 (95m ago) 20h vmsp-platform support-bundle-logoffloader-2npm4 1/1 Running 1 (95m ago) 20h vmsp-platform synthetic-checker-65545b8f84-sbx98 2/2 Running 2 (95m ago) 20h vmsp-platform trust-manager-5476545759-gk4cn 1/1 Running 1 (95m ago) 20h vmsp-platform upgrade-component-6o4v2zdxargwvkpci4oziv3mwm-execute-script-3885849039 0/2 Error 0 19h vmsp-platform vcenter-path-sync-cronjob-29689860-sbj4c 0/1 Completed 0 109m vmsp-platform vcenter-path-sync-cronjob-29689920-tqswg 0/1 Completed 0 49m vmsp-platform velero-6b9655b487-wr47q 1/1 Running 1 (95m ago) 20h vmsp-platform vmsp-agent-5997568c97-4p55g 1/1 Running 1 (95m ago) 20h vmsp-platform vmsp-etcd-0 1/1 Running 1 (95m ago) 20h vmsp-platform vmsp-gateway-69749585d4-mscgf 2/2 Running 2 (95m ago) 20h vmsp-platform vmsp-identity-6cdbc86d46-cc4rk 1/1 Running 1 (95m ago) 20h vmsp-platform vmsp-identity-6cdbc86d46-dgrnx 1/1 Running 1 (95m ago) 20h vmsp-platform vmsp-operator-59665ff76f-bwm9t 1/1 Running 1 (95m ago) 20h vmsp-platform zalando-postgres-operator-65df8746d4-rfcsh 1/1 Running 1 (95m ago) 20h vmsp-platform zot-1-0 1/1 Running 1 (95m ago) 20h vmsp-platform zot-1-configure-node-znxth 1/1 Running 1 (95m ago) 20h vmsp-platform zot-volumes-resize-nfjck 0/1 Completed 0 20h vmsp-policies kyverno-admission-controller-558cd4c545-2k2dd 1/1 Running 1 (95m ago) 20h vmsp-policies kyverno-admission-controller-558cd4c545-xqkf6 1/1 Running 1 (95m ago) 20h vmsp-policies kyverno-admission-controller-558cd4c545-zd6g5 1/1 Running 1 (95m ago) 20h vmsp-policies kyverno-background-controller-67966cc6d8-jmd56 1/1 Running 1 (95m ago) 20h vmsp-policies kyverno-cleanup-controller-6c946746c7-x6dxc 1/1 Running 1 (95m ago) 20h vmware-system-user@kr-auto9-8d728 [ ~ ]$



7. VCF automation service - Error 발생 Pod에 대한 세부 로그 조회

vmware-system-user@kr-auto9-8d728 [ ~ ]$ kubectl logs upgrade-component-6o4v2zdxargwvkpci4oziv3mwm-execute-script-3885849039 -n vmsp-platform

2026/06/13 05:38:44 INFO : 6o4v2zdxargwvkpci4oziv3mwm PowerOff INFO [6o4v2zdxargwvkpci4oziv3mwm]: Powering down virtualmachines 2026/06/13 05:38:44 DEBUG : 6o4v2zdxargwvkpci4oziv3mwm Using path for datastore: /Mgmt01-dc01/datastore/Mgmt01-cl01-ds-vsan01 2026/06/13 05:38:44 DEBUG : 6o4v2zdxargwvkpci4oziv3mwm Using path for datacenter: /Mgmt01-dc01 2026/06/13 05:38:44 DEBUG : 6o4v2zdxargwvkpci4oziv3mwm Using path for folder: /Mgmt01-dc01/vm 2026/06/13 05:38:44 INFO : 6o4v2zdxargwvkpci4oziv3mwm Using vSphere resources - Datacenter: /Mgmt01-dc01, Datastore: /Mgmt01-dc01/datastore/Mgmt01-cl01-ds-vsan01, Folder: /Mgmt01-dc01/vm govc: vm '/Mgmt01-dc01/vm/kr-auto-p76ft' not found 2026/06/13 05:38:45 INFO : 6o4v2zdxargwvkpci4oziv3mwm retrying in 6s govc:

vm '/Mgmt01-dc01/vm/kr-auto-p76ft' not found 2026/06/13 05:38:51 INFO : 6o4v2zdxargwvkpci4oziv3mwm retrying in 10s govc: vm '/Mgmt01-dc01/vm/kr-auto-p76ft' not found 2026/06/13 05:39:01 INFO : 6o4v2zdxargwvkpci4oziv3mwm retrying in 20s govc: vm '/Mgmt01-dc01/vm/kr-auto-p76ft' not found 2026/06/13 05:39:21 ERROR : 6o4v2zdxargwvkpci4oziv3mwm Script exited unexpectedly at line 1 with exit code 1 2026/06/13 05:39:21 INFO : 6o4v2zdxargwvkpci4oziv3mwm Workflow stage: 2026/06/13 05:39:21 INFO : 6o4v2zdxargwvkpci4oziv3mwm Calling get_message_count... 2026/06/13 05:39:21 INFO : 6o4v2zdxargwvkpci4oziv3mwm get_message_count returned: 0, output: '0' 2026/06/13 05:39:21 INFO : 6o4v2zdxargwvkpci4oziv3mwm Existing messages: 0 2026/06/13 05:39:21 INFO : 6o4v2zdxargwvkpci4oziv3mwm Creating generic error message secret/workflow-secret-6o4v2zdxargwvkpci4oziv3mwm created time="2026-06-13T05:39:23.119Z" level=info msg="sub-process exited" argo=true error="<nil>" time="2026-06-13T05:39:23.119Z" level=info msg="no need to save parameter - on overlapping volume: /tmp/output.txt" argo=true time="2026-06-13T05:39:23.119Z" level=info msg="no need to save parameter - on overlapping volume: /tmp/error.txt" argo=true Error: exit status 1 vmware-system-user@kr-auto9-8d728 [ ~ ]$



- 기존 VCF Automation 9.0.1 Appliance VM을 VM폴더를 새로 생성해서 옮겼더니 업그레이드 시 해당 디렉터리를 찾지 못해서 발생된 것으로 짐작된다 (유사 이슈로 케이스 보고된바 있음..)

- 해당 이슈를 트러블슈팅하기보다는 새로 배포하는 방향으로 진행하였다.



[VCF 9.1 환경에서 기존 VCF Automation (9.0.X or 9.1) 제거 방법]

- 위와 같이 업그레이드에 실패하거나, VCF Ops-Fleet Service를 통해 VCF Automation 9.1 배포에 실패한다면 아래 Broadcom KB에 나온 VCF Ops/Fleet/SDDC Manager Cleanup Script를 통해 깔끔히 지우는 방법을 추천한다.

- VCF Automation 뿐 아니라 VCF Ops/Fleet/SDDC Manager에 등록된 Add-on (sso/logs/networks 등등)도 깔끔히 삭제할 수 있게 만들어놓은 python script 이다.



KB : https://knowledge.broadcom.com/external/article/441333/scripted-components-cleanup-from-vcf-ope.html

Scripted components cleanup from VCF Operations 9.1



1. 작업 절차

- 스크립트는 조회 / 삭제 두가지 기능을 제공한다.

1) 스크립트를 다운로드 하여 python 실행 가능 폴더 (fleet/sddcmanager로 접속 가능한 리눅스 서버 혹은 임시로 fleet service 서버)에 옮겨 놓는다

2) 먼저 조회 스크립트를 돌려서 VMSP에 admin 계정으로 접속한 후 삭제하고자 하는 객체가 있을 경우, <component-id>를 얻어낼 수 있다.

3) 얻어낸 <component-id>로 VMSP에 등록된 객체를 삭제한다.

4) VMSP 뿐만 아니라 SDDC Manager에서도 동일 방법으로 객체를 삭제해야 새로 깔끔히 배포가 가능하다.







2. OVA 기반 컴포넌트 삭제

- VCF 9.0.x 기반의 버전에서는 VCF Logs/SSO/NI/Automation 등을 OVA 기반으로 배포하였다.

이것도 위 스크립트 기반으로 조회 후 삭제할 수 있다.

1. List components deployed on vCenter



   python cleanup_component.py list ova-component --fleet-fqdn <fleet-lcm-fqdn> --vcf-services-runtime-fqdn <vcf-services-runtime-fqdn> --vcf-services-runtime-username <vcf-services-runtime-username>

2. Delete component deployed on vCenter



   python cleanup_component.py delete ova-component --component-id <ova-component-id> --fleet-fqdn <fleet-lcm-fqdn> --vcf-services-runtime-fqdn <vcf-services-runtime-fqdn> --vcf-services-runtime-username <vcf-services-runtime-username> --vcenter-username <vcenter-username>



3. VMSP 기반 컴포넌트 삭제

- VCF 9.1에서 생성된, 혹은 9.1 업그레이드간 실패된 객체를 위 방법으로 조회 후 삭제한다.



1. List components deployed on VCF Services Runtime



   python cleanup_component.py list vsp-component --fleet-fqdn <fleet-lcm-fqdn> --vcf-services-runtime-fqdn <vcf-services-runtime-fqdn> --vcf-services-runtime-username <vcf-services-runtime-username>

2. Delete component deployed on VCF Services Runtime



   python cleanup_component.py delete vsp-component --component-id <vsp-component-id> --fleet-fqdn <fleet-lcm-fqdn> --vcf-services-runtime-fqdn <vcf-services-runtime-fqdn> --vcf-services-runtime-username <vcf-services-runtime-username>



4. VCF Automation에만 해당하는 추가 작업

- VCF Automation의 경우에는 위 방법을 모두 수행한 후, VCFA / Migration Service 삭제를 위해 추가 작업을 한다

1. VCF Automation and Migration Service Engine

   You must remove VCF Automation and the Migration Service Engine before you remove the VCF Automation VCF Services Runtime.


   1. List components deployed on VCF Services Runtime



      python cleanup_component.py list vsp-component --fleet-fqdn <fleet-lcm-fqdn> --vcf-services-runtime-fqdn <vcf-services-runtime-fqdn> --vcf-services-runtime-username <vcf-services-runtime-username>

   2. Delete component deployed on the VCF Automation VCF Services Runtime



      python cleanup_component.py delete vsp-component --component-id <vsp-component-id> --fleet-fqdn <fleet-lcm-fqdn> --vcf-services-runtime-fqdn <vcf-services-runtime-fqdn> --vcf-services-runtime-username <vcf-services-runtime-username> --vcfa-vcf-services-runtime-fqdn <vcfa-vcf-services-runtime-fqdn> --vcfa-vcf-services-runtime-username <vcfa-vcf-services-runtime-username>



5. 재배포 전 마지막으로 SDDC Manager Appliance에서 해야하는 필수 작업

- SDDC Manager Appliance에 OS 로그인계정인 'vcf' 계정으로 접속 후 'sudo su' 명령으로 루트 권한 이용해 아래의 작업을 추가로 수행한다.

1. VCF Automation VCF Services Runtime

   Warning: Deleting a VCF Services Runtime requires this script to be executed as the root user inside the SDDC Manager virtual machine.


   1. List VCF Services Runtime



      python cleanup_component.py list vsp-cluster --fleet-fqdn <fleet-lcm-fqdn> --vcf-services-runtime-fqdn <vcf-services-runtime-fqdn> --vcf-services-runtime-username <vcf-services-runtime-username>

   2. Delete VCF Services Runtime



      python cleanup_component.py delete vsp-cluster --component-id <vsp-cluster-id> --fleet-fqdn <fleet-lcm-fqdn> --vcf-services-runtime-fqdn <vcf-services-runtime-fqdn> --vcf-services-runtime-username <vcf-services-runtime-username> --vcenter-username <vcenter-username>



6. VCF Automation 재배포 -> 완료

- 위 과정이 정상적으로 수행되면, VCF Operations - Build - Lifecycle - VCF Management - Component - Add Component 탭에서 아래 스크린샷처럼 새롭게 VCF Automation을 배포하게끔 메뉴가 활성화 된다.



- 절차에 따라 다시 배포해준다.

- 추가로 VCF Automation 배포 시, VCF Automation FQDN은 위에 지정한 IP 서브넷 내 내 위치해도 관계 없지만,

VCF Automation을 위해 생성되는 'VCF service runtime FQDN'은 위에서 지정한 IP 서브넷 외부의 별도의 IP로 FQDN이 지정되어야만 정상 배포 된다. (이러한 이유로 만약 Fail 되면 Retry 옵션은 없고 새롭게 배포를 수행하면 된다.)

- 예를 들어, 본 환경에서는 192.168.111.144/29를 지정해서 144-151 까지는 블록된 IP라 VCF Service Runtime FQDN은 빈 IP인 192.168.111.143 = kr-auto9-vsp.rangers.lab을 별도로 생성하여 부여하였다.

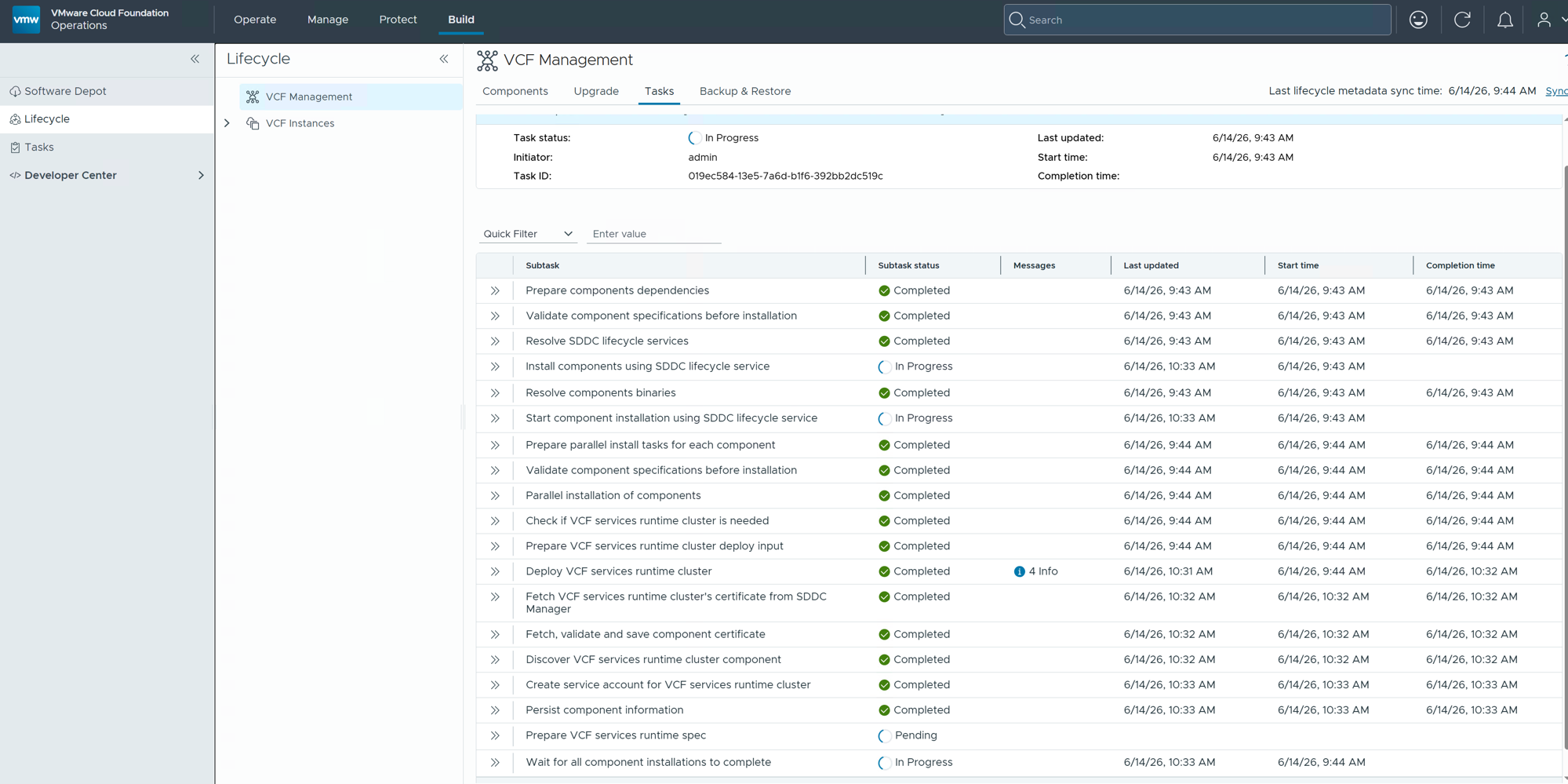

배포 완료 - 약 2시간 정도 소요
